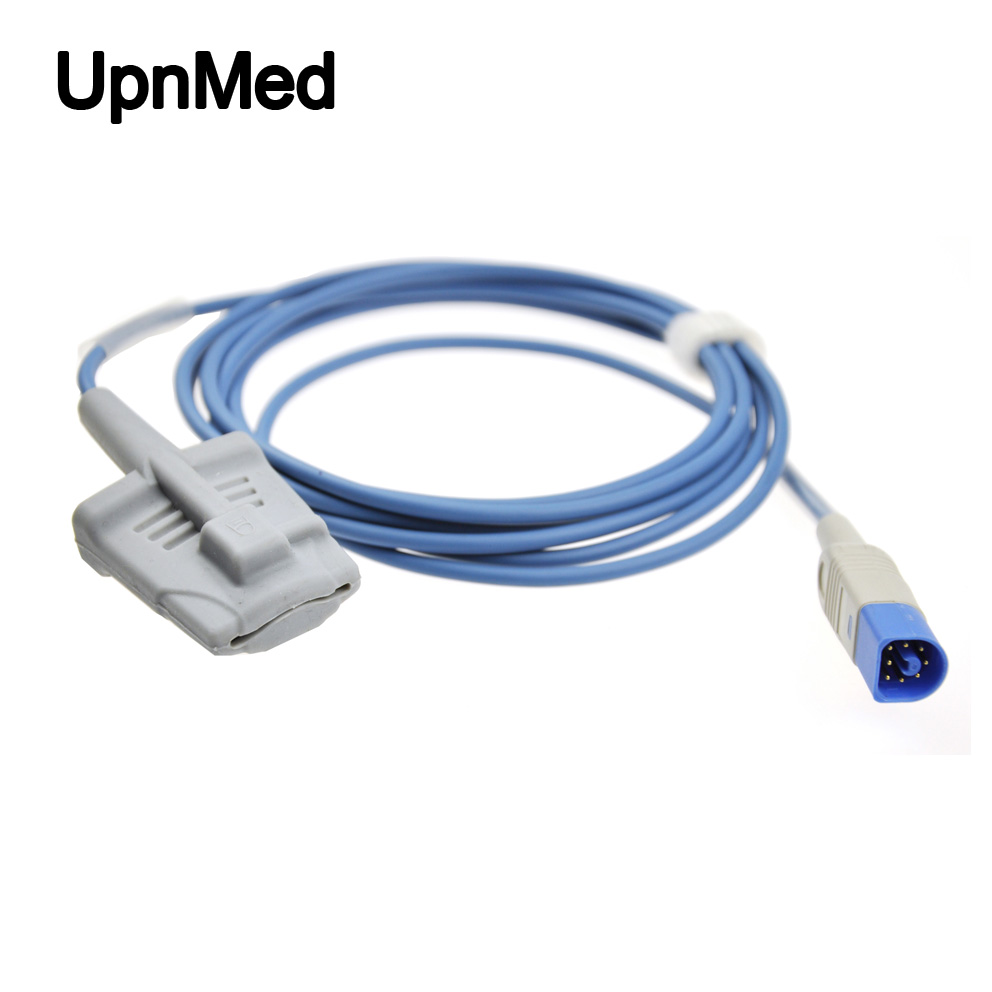

HP M1191A/MP50/MP20/MP30 adult silicone soft tip Spo2 Sensor,finger clip ,8 pins, oximax tech

• Place of Origin:CN;GUA
• Properties:Medical Materials & Accessories
• Instrument classification:Class I
• Brand Name:HP
• Model Number:M1191A/MP50/MP20/MP30

HP M1191A/MP50/MP20/MP30  adult silicone soft tip Spo2 Sensor,finger clip ,8 pins, oximax tech

1.  M1191A Spo2 Sensor,finger clip ,8 pins

2.Connector Guide: 8 Pins

3.Compatibility: This sensor connects directly to the bedside monitor without an extension cable, and is compatible for the following SpO2 monitors: Viridia 24C, Viridia ,M3, M4, M2601A, M3000A, M3500B, M4735A,MP20,MP30,MP40,MP50,MP60,MP70,MP90,C1,C3,VirDia, VM4,VM6,VM8

4.Original part number:
M1191A     adult finger clip spo2 sensor,5ft
M1191B      adult soft tip spo2 sensor,5ft
M1191AL   adult soft tip spo2 sensor,10ft
M1191BL   adult soft tip spo2 sensor,10ft
M1196A     adult clip spo2 sensor, 10 ft
M1192A     pediatric soft tip spo2 sensor,5ft
M1193A     neonate wrap spo2 sensor,5ft
M1194A     adult ear clip spo2 sensor,5ft

Process flow

1.Wire cutting -- 2.Sheath Stripping -- 3.Shield Twisting -- 4.Sleeve Crimping -- 5.Tin soldering -- 6.End Pressing -- 7.Set Plastic Shell -- 8.Electrical Test -- 9.Internal Mold Forming -- 10.Outer Mold Forming -- 11.Visual Inspection -- 12.Electrical Test -- 13.Thread end of network -- 14.Sheath tripping -- 15.Shield twisting -- 16.Tin soldering -- 17.Chips welding -- 18.Glue dispensing --19.Assembly -- 20.Final test -- 21.Package
