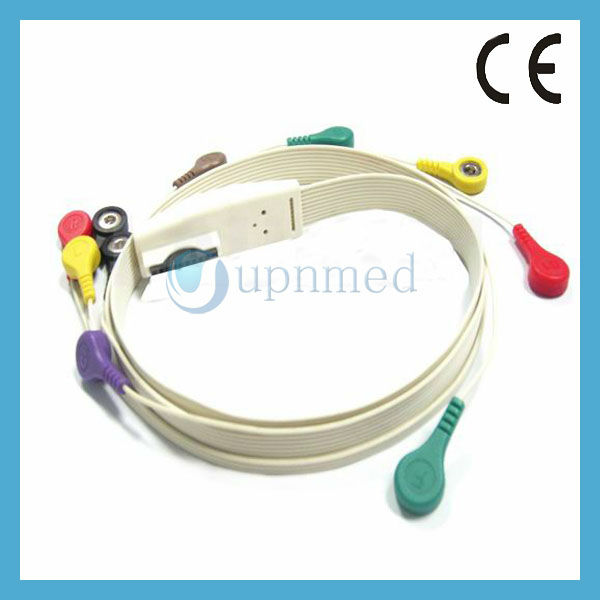

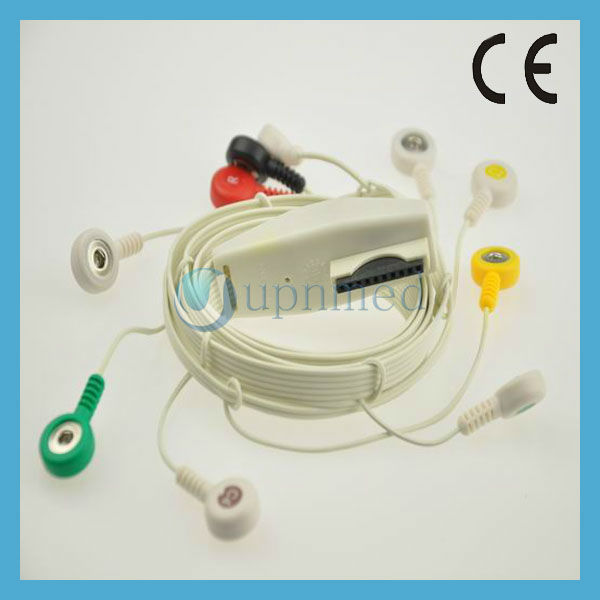

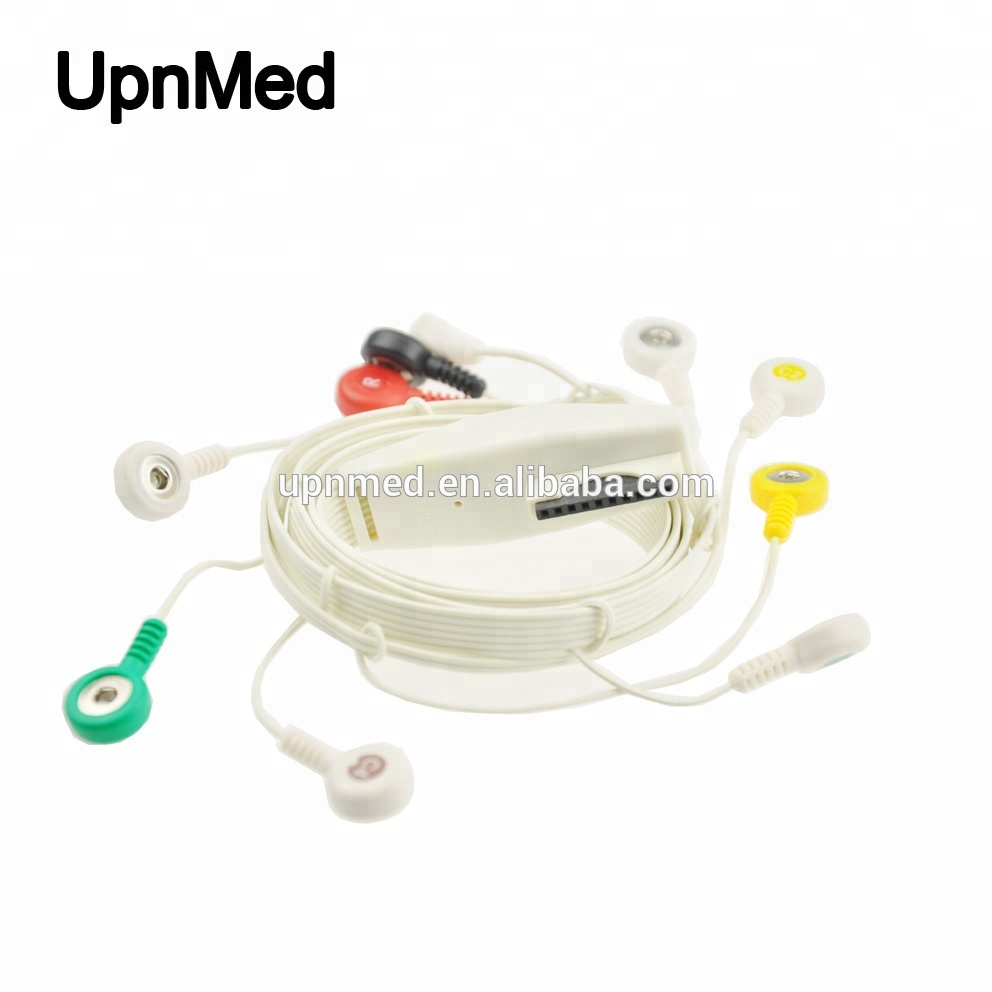

Mortara Holter 10 lead wires set ecg cable, with snap type

• Place of Origin:CN;GUA
• Properties:Medical Materials & Accessories
• Instrument classification:Class I
• Brand Name:Mortara Holter

Description:  Mortara Holter 10 lead wires set ecg cable, with snap type

LEAD WIRES
Unshielded lead wires have the 1.5 mm (.060) DIN socket injection molded at one end and a snap, Grabber injection molded at the other. The snap termination’s ergonomic, teardrop design reduces tangling at the patient end connector. Pinch and neo-pinch terminations have dual sided metal contacts to ensure the connection in flex-reliefs.

Process flow:
1. Wire cutting -- 2. Stripping outer coating -- 3. Shield twisting -- 4. Wire repair-- 5 .Sleeve crimping --
6. Open core --7. End pressing-- 8. Welding button -- 9. Internal mold forming -- 10. Outer mold forming--
11. Test -- 12. Cable cutting --13. Stripping outer coating-- 14. Shield twisting -- 15. Sleeve crimping --
16. Open core -- 17. Welding -- 18. Forming plugs of internal mold -- 19. Forming plugs of internal mold --
20. Inspection of cable -- 21. Welding distributor -- 22. Internal mold of distributor --
23. Outer mold of distributor -- 24. Test -- 25 .Visual inspection -- 26.Package
