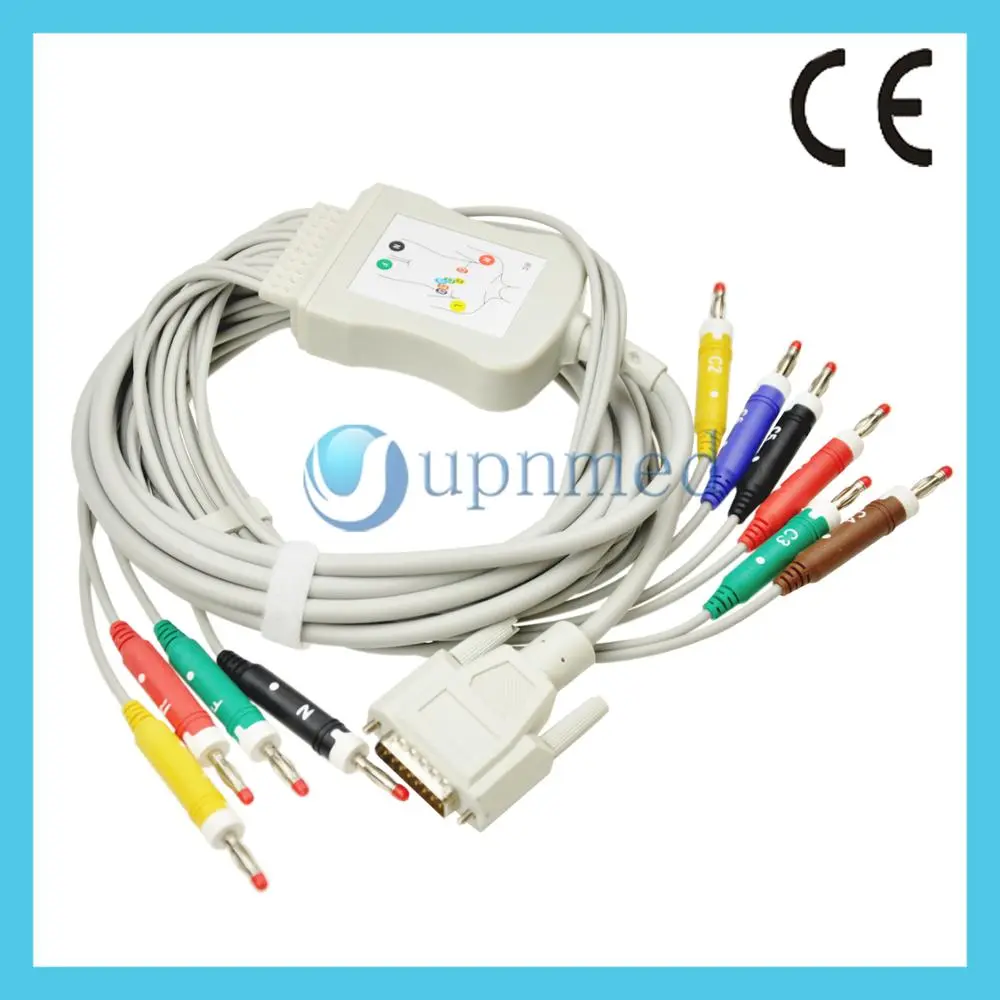

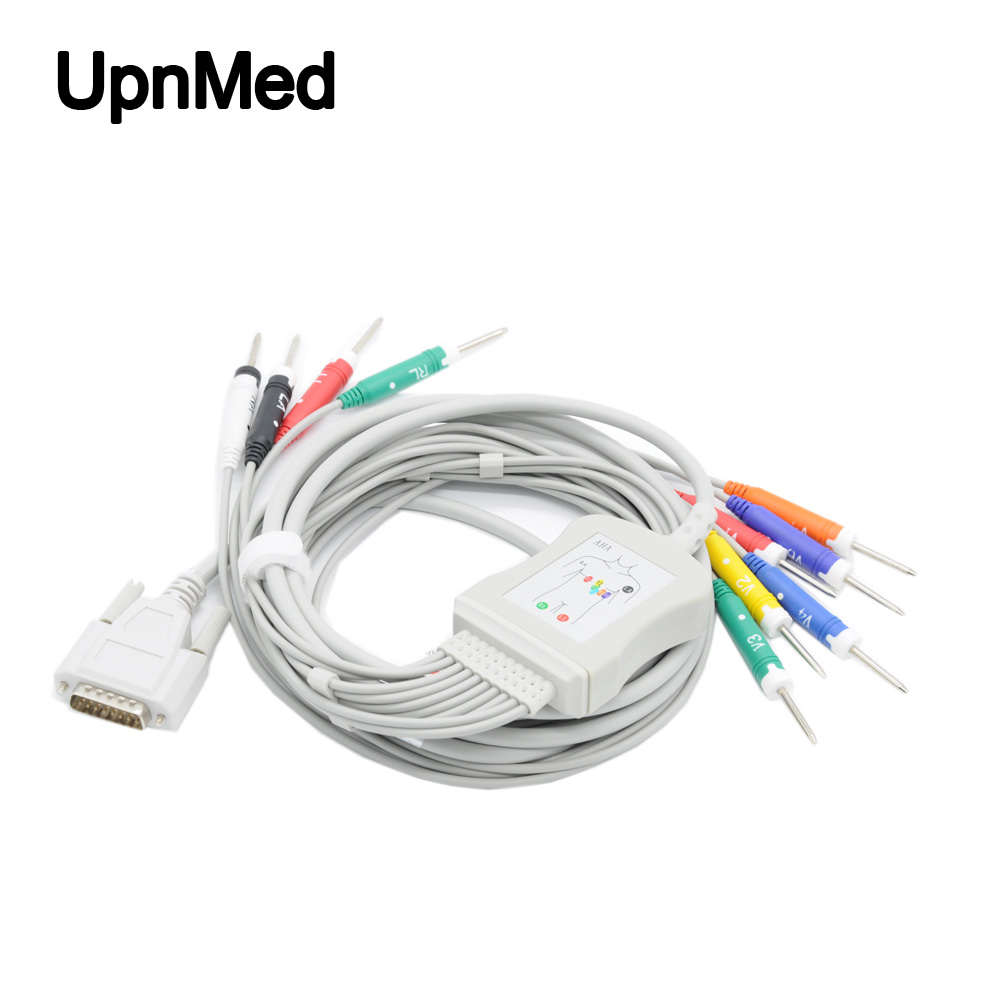

Nihon Kohden ECG-9620/ ECG-9010 10 lead EKG cable ,No Resistance

• Place of Origin:CN;GUA
• Instrument classification:Class I

Nihon Kohden ECG-9620/ ECG-9010 10 lead EKG cable ,No Resistance

1.Description:Nihon Kohden EKG 10-lead cable with leadw ires

2.Connetor:DB 15pin male connector , 3.0 Din type or 4.0 banana on electrode end .

3.Compatibility : Use with Nihon Kohden ECG-9620, ECG-9010, ECG-9020, ECG-9022, ECG-9110,ECG-9130,ECG-9132, DongJiang ECG-11A,ECG-11B,   ECG-11D, ECG-32A, (II), ECG-120.

Storage and transport environment: -5~+40°C
Operating temperature: 0~+40°C
Humidity
Operating/Storage/Transportation 0% to 80% non condensing Altitude
Hyperbaric Pressure 86kPa~106kPa
Biocompatibility: All patient contact materials are latex free and have been tested Instrument

4.Connectors
A variety of 15 pin D-subminiature connector and round type solutions are available in either metal or plastic connectors, overmolded housings and straight or angled flex-reliefs. Connectors are surrounded by insert molded flex-reliefs to protect terminations and extend product life.

5.Trunk Cables
The multi-link an 2 meter (80 inch) trunk cable Shielded, low noise cable minimizes microphonic noise and electrical nterference. Flexreliefs at the connector and cable yoke provide added durability and reduce conductor breakage. The cable
is available in AHA or IEC nomenclature and color coded patient terminations. Lot numbers are included to indicate quipment compatibility and product traceability.

6.Patient end termination
Lead wires can be terminated to a variety of patient connectors to mate with adapters or industry standard electrode attachments. Shielded lead wires are jacketed in TPU and have color coded flex reliefs. Lead wires can accommodate
4.7 k, 10k or 20k ohm resistors (snap, grabber, banana and straight pin only).
