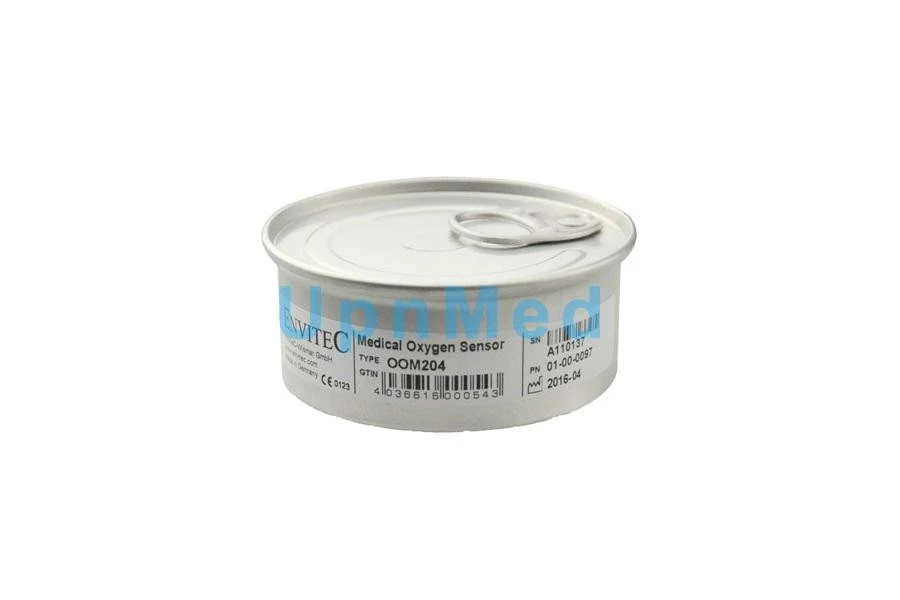

Original Envitec OOM204 Medical oxygen sensor/O2 Cell

• Place of Origin:CN;GUA
• Properties:Medical Materials & Accessories
• Instrument classification:Class III

Original Envitec OOM204 Medical oxygen sensor/O2 Cell

 Product Description

Original Envitec OOM204 Medical oxygen sensor ,OOM202 O2 cell

Use the advantages: • Compliant with European MDD (CE certification) • Meets ISO 80601-2-55 • Designed and manufactured according to EN ISO 13485 • Accurate and reliable fast response • Resistant to N2 O • Excellent signal stability • High product quality • Short delivery times • Technical support • Made in Germany • FDA cleared

Technical Specifications

OOM204 Measurement range 0 % ... 100 % oxygen (at atmospheric pressure)

Nominal sensor lifetime ≥ 500 000 % volume oxygen hours

Output in ambient air 9 mV ... 13.5 mV (each of two channels)

Output difference 1.25 mV (between the two channels)

Electrical interface 3 pin (Molex® 22-11-1031)

Accuracy meets ISO 80601-2-55 requirements Repeatability < 1 % volume O2 at constant temperature and pressure

Linearity error < 3 % relative

Response time < 12 s to 90 % of final value

Zero offset voltage < 200 µV in 100 % nitrogen, applied for 5 min

Cross interference meets ISO 80601-2-55 requirements

Influence of humidity -0.03 % rel. per % RH at 25 °C

Pressure range 0.6 bar ... 2 bar (ppO2 0 ... 1250 mbar O2 )

Influence of pressure proportional to change in oxygen partial pressure

Influence of mechanical shock < 1 % relative after a fall from 1 m

Operating temperature 0 °C ... +50 °C

Temperature compensation built-in NTC compensation

Effect of temperature compensation (steady state) between +25 °C and +40 °C: 3 % relative error between 0 °C and +50 °C: 8 % relative error

Operating humidity 0 % ... 99 % RH non-condensing

Long term output drift < 1 % volume oxygen per month typically < -15 % relative over lifetime

Storage temperature -20 °C ... +50 °C

Recommended storage +5 °C … +15 °C

Recommended load ≥ 10 kOhms

Warm-up time < 30 minutes, after replacement of sensor

Weight approximately 28 grams

Part number 01-00-0097

Warranty and Returns

Warranty:

Returns:

Exchanging or returning the products should be accepted upon pre-anthorization .

25% re-stock fee may be charge while returning the goods.

All shipping cost related to the return of goods under warranty or for repair is the responsible of customer.

 The issued goods must be return within 30 days.

Package & Delivery

Package: Separate package with PE bag, CE mark & Series No. on the cable,1 piece/bag.

Delivery time: 3-5 working days.

Delivery options: DHL,FedEx,UPS,TNT,Aramex,EMS,China Post,HK Post.
