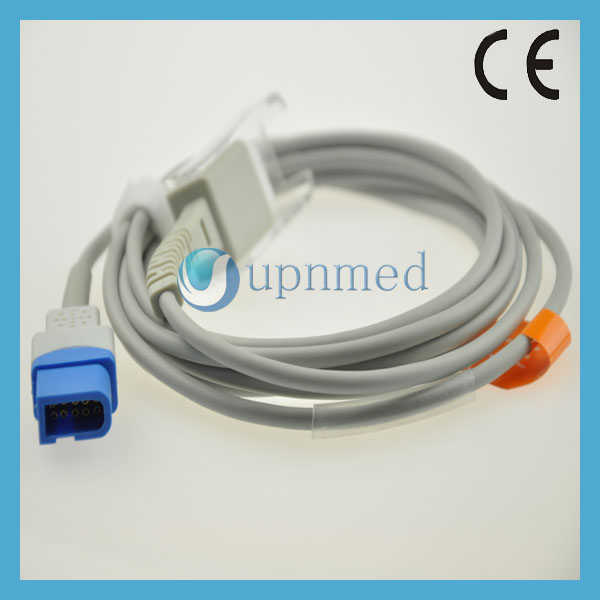

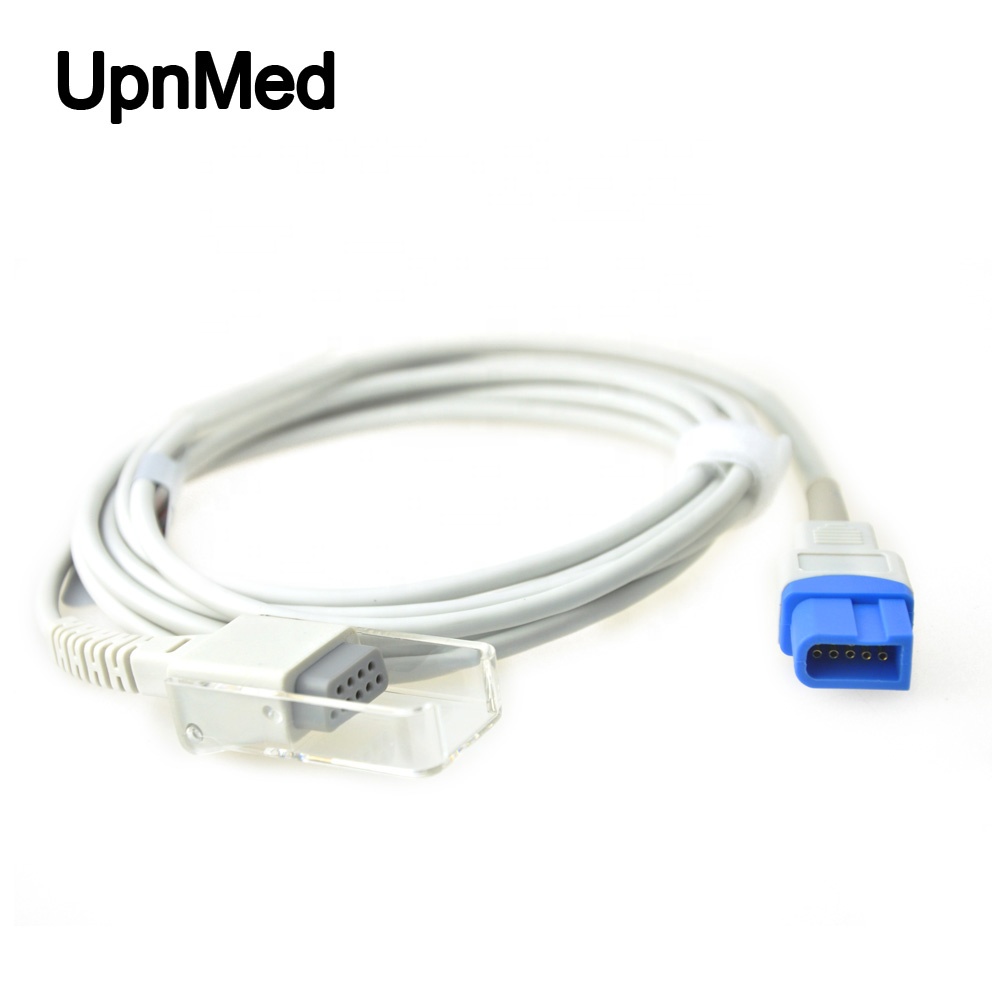

Spacelabs spo2 adapter cable, 10pin to DB9F

• Place of Origin:CN;GUA
• Properties:Medical Materials & Accessories
• Instrument classification:Class I
• Brand Name:Spacelabs
• Model Number:90496 Ultraview

Spacelabs spo2 adapter cable, 10pin to DB9F

Description: Spacelabs spo2 adapter cable, 10pin to DB9
Connector : Rectangular 10 pin to DB 9 female.
Compatibility : Spacelab 90496 Ultraview(Novametrix  spo2 )(Hypertronics to 10-pin) .

Process flow

1.Wire cutting -- 2.Sheath Stripping -- 3.Shield Twisting -- 4.Sleeve Crimping -- 5.Tin soldering -- 6.End Pressing -- 7.Set Plastic Shell -- 8.Electrical Test -- 9.Internal Mold Forming -- 10.Outer Mold Forming -- 11.Visual Inspection -- 12.Electrical Test -- 13.Thread end of network -- 14.Sheath tripping -- 15.Shield twisting -- 16.Tin soldering -- 17.Chips welding -- 18.Glue dispensing --19.Assembly -- 20.Final test -- 21.Package

Connector side	other side
Cable	Materials:  TPU Length: 2.4m
Warranty	1.Reusable spo2 sensor, Spo2 adapter cable --12 months ECG cable,EKG cable, IBP cable -6 months 2.Temperature probe ---6 months 3.NIBP cuff ---3months
