- Place of Origin:CN;GUA
- Properties:Medical Materials & Accessories
- Instrument classification:Class I
- Brand Name:HP
- Model Number:M1191A/MP50/MP30/MP20

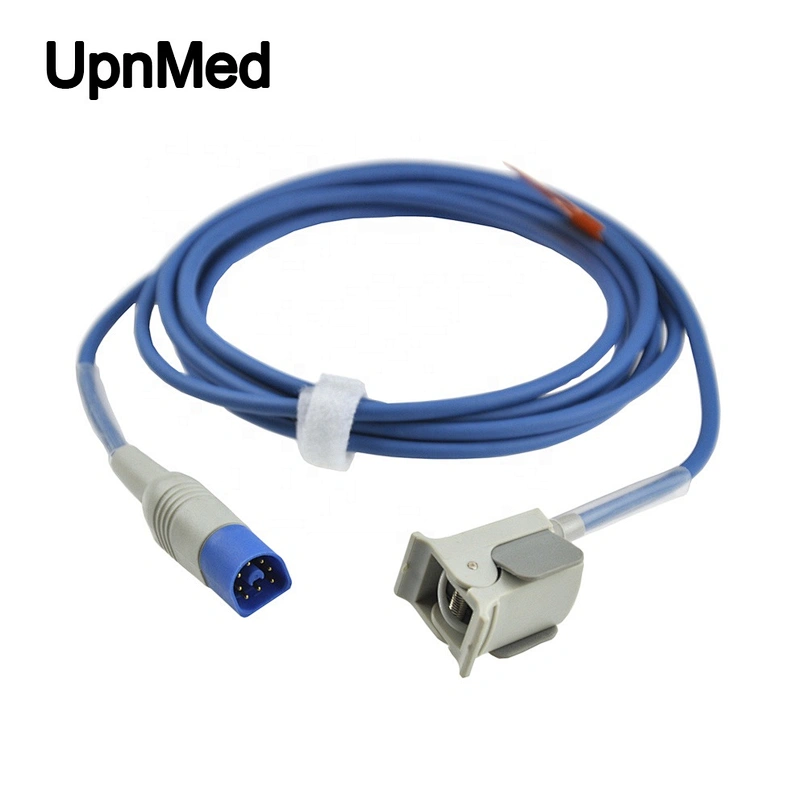

HP M1191A/MP50/MP30/MP20 pediatric finger clip Spo2 Sensor,8 pins,Oximax tech
1. M1191A Spo2 Sensor,finger clip ,8 pins
2.Connector Guide: 8 Pins
3.Compatibility: This sensor connects directly to the bedside monitor without an extension cable, and is compatible for the following SpO2 monitors: Viridia 24C, Viridia ,M3, M4, M2601A, M3000A, M3500B, M4735A,MP20,MP30,MP40,MP50,MP60,MP70,MP90,C1,C3,VirDia, VM4,VM6,VM8
4.Original part number:
M1191A adult finger clip spo2 sensor,5ft
M1191B adult soft tip spo2 sensor,5ft
M1191AL adult soft tip spo2 sensor,10ft
M1191BL adult soft tip spo2 sensor,10ft
M1196A adult clip spo2 sensor, 10 ft
M1192A pediatric soft tip spo2 sensor,5ft
M1193A neonate wrap spo2 sensor,5ft
M1194A adult ear clip spo2 sensor,5ft
| Cable | Materials: TPU Length: 1m/3m |
| Compatible module | Viridia 24C, Viridia ,M3, M4, M2601A, M3000A, M3500B, M4735A,MP20,MP30,MP40,MP50,MP60,MP70,MP90,C1,C3,VirDia, VM4,VM6,VM8 |
| Warranty | 1.Reusable spo2 sensor, Spo2 adapter cable, ECG cable,EKG cable, IBP cable ---12 months |
Process flow
1.Wire cutting -- 2.Sheath Stripping -- 3.Shield Twisting -- 4.Sleeve Crimping -- 5.Tin soldering -- 6.End Pressing -- 7.Set Plastic Shell -- 8.Electrical Test -- 9.Internal Mold Forming -- 10.Outer Mold Forming -- 11.Visual Inspection -- 12.Electrical Test -- 13.Thread end of network -- 14.Sheath tripping -- 15.Shield twisting -- 16.Tin soldering -- 17.Chips welding -- 18.Glue dispensing --19.Assembly -- 20.Final test -- 21.Package
